What Is an Ultrasonic Welding Machine and How Does It Work?

초음파 용접기란 무엇입니까?

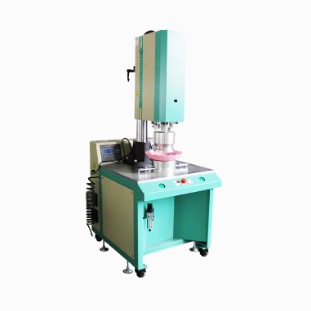

안 초음파 용접기 is a piece of industrial equipment that joins two materials, most commonly thermoplastics or metals, by using high-frequency vibrations rather than heat from an external source or adhesives. The machine converts electrical energy into mechanical vibration, which is then applied to the surfaces being joined. This vibration generates localized frictional heat at the interface between the two parts, softening or melting the material just enough to form a strong, permanent bond as it cools. Because the process does not rely on glues, solvents, or open flames, it is widely regarded as a clean, fast, and repeatable joining method suited to high-volume manufacturing environments.

Unlike traditional welding techniques that require melting an entire component, ultrasonic welding focuses energy precisely at the joint line. This targeted approach reduces material waste, shortens cycle times, and minimizes thermal stress on surrounding areas, making it a preferred choice for delicate assemblies such as electronic components, medical devices, and packaging films.

초음파 용접은 어떻게 작동하나요?

The working principle of an ultrasonic welding machine centers on converting electrical energy into high-frequency mechanical vibration, typically between 15 kHz and 70 kHz. These vibrations are transmitted through a series of precision components that amplify and direct the energy to the exact point where bonding needs to occur.

기계의 주요 구성 요소

Every ultrasonic welding system relies on a coordinated set of parts working together to produce a consistent weld:

용접 공정 단계별

Once the machine is set up, the actual welding cycle happens in a matter of seconds. Understanding each stage helps explain why the process is so efficient:

• The two parts to be joined are positioned between the horn and the anvil, with a designed contact point known as an energy director in plastic welding applications
• The horn descends and applies controlled pressure to hold the parts firmly together
• High-frequency vibration is activated, creating friction at the joint interface
• Localized heat builds rapidly, softening or melting the material at the contact point only
• Vibration stops while pressure is maintained, allowing the molten material to solidify and form a permanent molecular bond
• The horn retracts and the finished, welded part is removed from the fixture

This entire sequence typically takes less than one second for small components and only a few seconds for larger or more complex assemblies, which is why ultrasonic welding is so well suited to automated production lines.

초음파 용접의 주요 장점

Manufacturers choose ultrasonic welding machines over alternative joining methods for several practical reasons. The process offers a combination of speed, consistency, and material compatibility that few other techniques can match.

• Extremely short cycle times, often under one second, support high-throughput manufacturing
• No consumables such as adhesives, solvents, or filler materials are required
• Minimal heat-affected zone reduces the risk of warping or damaging nearby components
• Highly repeatable results once parameters are properly set, reducing part-to-part variation
• Environmentally friendly process with no fumes, off-gassing, or hazardous byproducts
• Compatible with automation and robotic integration for continuous production

산업 전반에 걸친 공통 애플리케이션

Because ultrasonic welding works with a wide range of thermoplastics, nonwoven fabrics, and certain metals, it has found a place in numerous industries. The specific application usually determines the machine's power output, horn design, and fixture configuration.

초음파 용접과 기타 접합 방법 비교

When deciding whether ultrasonic welding is the right fit, it helps to compare it against other common joining techniques such as adhesive bonding and heat staking.

This comparison shows why ultrasonic welding is often favored in high-speed production settings where curing delays or extra materials would slow down output or add cost.

올바른 초음파 용접기 선택

적절한 기계를 선택하는 것은 재료 유형, 부품 형상 및 필요한 생산량에 따라 다릅니다. 구매자는 일반적으로 더 크고 견고한 부품의 경우 15kHz부터 작고 섬세한 부품의 경우 40kHz 이상 범위의 주파수 옵션을 평가합니다. Power rating, horn design, and the availability of programmable controls for amplitude, pressure, and weld time also play a significant role in matching a machine to a specific application. Manufacturers producing varied product lines often invest in machines with interchangeable tooling so a single unit can handle multiple part designs without major reconfiguration.

최적의 용접 품질을 위한 모범 사례

일관되고 강력한 용접을 위해서는 기계 설정과 부품 설계 모두에 주의가 필요합니다. The following practices help minimize defects and improve overall weld strength:

• 재료 및 부품 형상에 적합한 에너지 디렉터 또는 전단 접합을 설계합니다.
• 용접되는 특정 열가소성 수지에 진폭 및 압력 설정을 일치시킵니다.
• 고르지 않은 에너지 전달을 방지하기 위해 부품이 올바르게 정렬되고 고정되었는지 확인하십시오.
• 마모로 인한 불일치를 방지하기 위해 혼 표면을 정기적으로 검사하고 유지관리하십시오.
• 전체 생산 실행을 시작하기 전에 테스트 용접을 실행하고 용접 강도 데이터를 모니터링하세요.

By combining sound part design with correctly calibrated equipment, manufacturers can rely on ultrasonic welding machines to deliver fast, clean, and durable joints across a wide range of products and industries.
